Product Overview
For ensuring reliable power continuity in industrial facilities, BBK offers UPS solutions designed with protection suitable for harsh field and facility conditions.
Industrial Series UPS systems can be mechanically, electrically or electronically customized to meet application requirements.
Applications
- Metro and tramway lines
- Marine and Ports
- Railway applications
- Industrial facilities
- Factories
- Highway tunnels
- Power rooms and electrical distribution areas
- Similar critical infrastructure applications

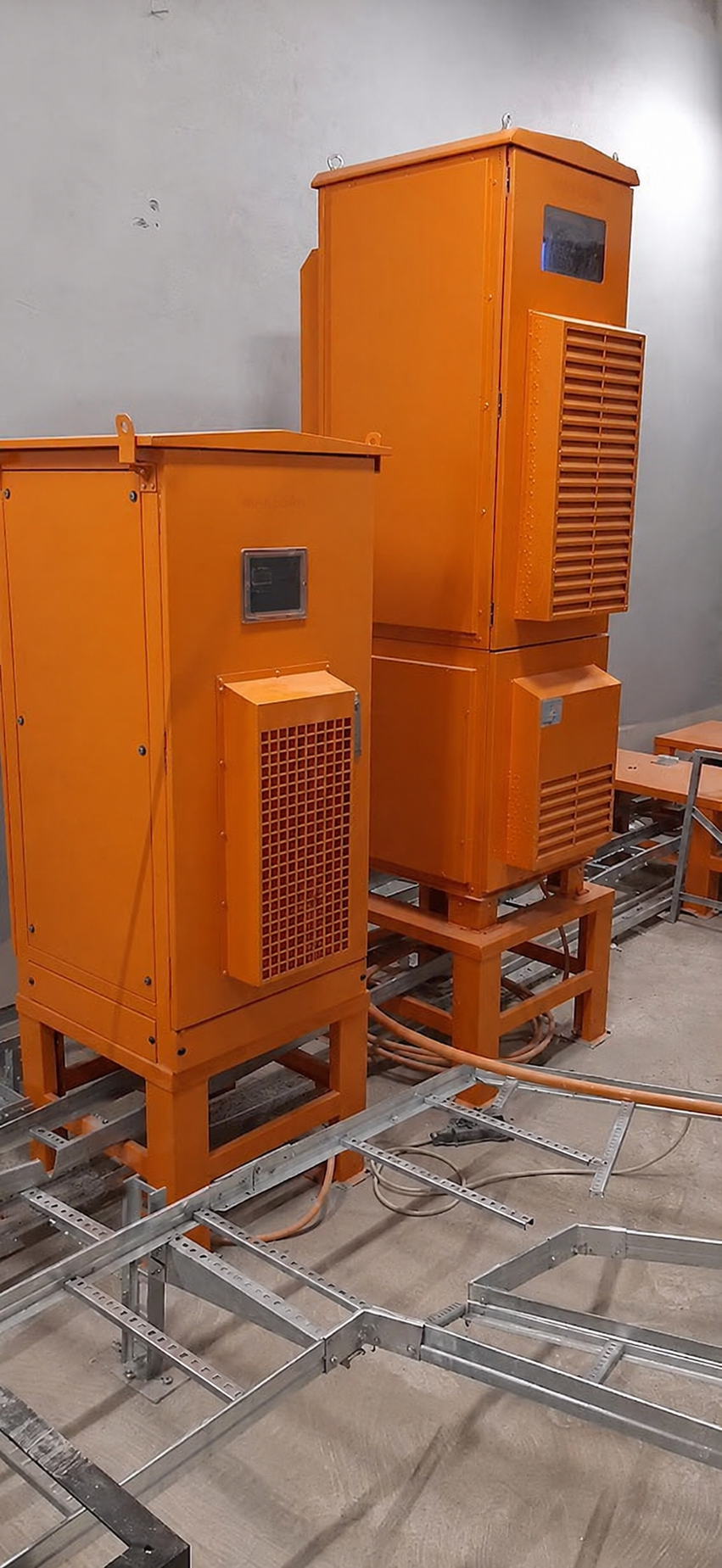

System Structure
Industrial Series UPS systems are available with mechanical protection classes ranging from IP20 to IP54.
Depending on application and operational requirements, isolation transformer solutions can be integrated at the input and/or output.
Technical Summary
| Product Family | Industrial UPS Series (INDBX) |
| Power Range | 10kVA – 120kVA |
| Protection Class | IP20 – IP54 |
| Input Voltage | 380 / 400 / 415 / 420VAC |
| Frequency | 50–60Hz selectable |
| Input Power Factor | >0.99 |
| Input THDi | ≤3% |
| Output Power Factor | 0.9 / 1.0 optional |
| Parallel Operation | Up to 8 units |
| Communication | RS-485, Dry Contact, Modbus TCP, SNMP optional |
Optional Features
- External isolation transformer selectable for input and/or output
- 3-phase input / 1-phase output option for 10kVA to 30kVA models
- Filter clogging detection
- External DC output
- External maintenance bypass panel
- External distribution panel
Technical Brochure
Download the technical brochure for system structure, options, communication infrastructure and application details.
Download BrochureFrequently Asked Questions
What is an Industrial UPS used for?
Industrial UPS systems are used to provide reliable power continuity for factories, industrial facilities, railway systems, tunnels, power rooms and other critical infrastructure applications.
What is the difference between an Industrial UPS and a standard UPS?
Industrial UPS systems are designed for harsh operating environments and can be configured with higher protection classes, industrial communication options, isolation transformers and application-specific mechanical structures.
Can an Industrial UPS be used in outdoor applications?
Yes. Depending on project requirements, Industrial UPS systems can be configured with protection classes up to IP54 and suitable enclosure structures for demanding environments.
Are isolation transformer options available?
Yes. Isolation transformers can be implemented on the input side, output side or both, depending on the application requirements.
What services does BBK Electromechanics provide?
BBK provides engineering, system integration, application-specific configuration, commissioning support, technical service and lifecycle support services.
